FDN537N
Manufacturer:
On Semiconductor
Mfr.Part #:
FDN537N
Datasheet:
Description:

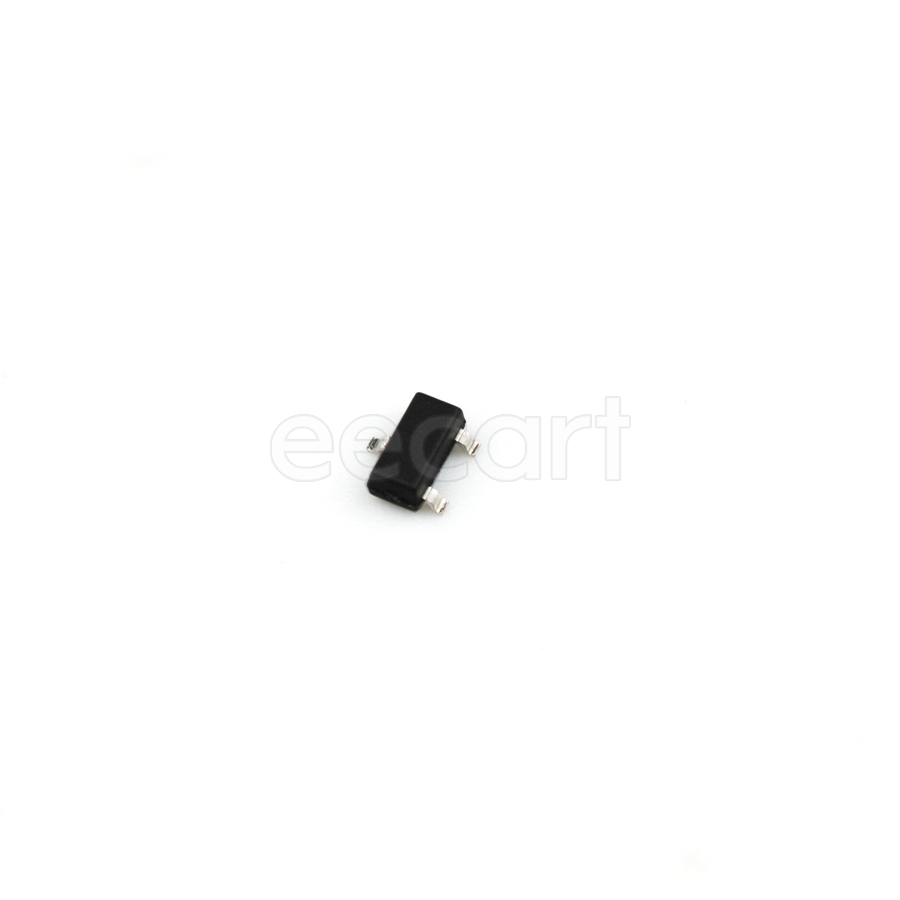

MOSFETs SSOT-3 SMD/SMT N-Channel number of channels:1 1.5 W 30 V Continuous Drain Current (ID):6.5 A 8.4 nC
| Parameter | Value |
|---|---|
| Length | 2.92 mm |
| Width | 1.4 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 3 |
| Height | 940 µm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 0.03 g |
| Contact Plating | Tin |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Max Power Dissipation | 600 mW |
| Power Dissipation | 1.5 W |
| Number of Channels | 1 |
| Input capacitance | 465 pF |
| Continuous Drain Current (ID) | 6.5 A |
| Rds On Max | 23 mΩ |
| Drain to Source Voltage (Vdss) | 30 V |
| Turn-On Delay Time | 5 ns |
| Turn-Off Delay Time | 11 ns |
| Element Configuration | Single |
| Fall Time | 10 ns |
| Rise Time | 10 ns |
| Gate Charge | 8.4 nC |
| Drain to Source Resistance | 36 mΩ |
| Gate to Source Voltage (Vgs) | 20 V |
| Drain to Source Breakdown Voltage (Vds) | 30 V |
| Schedule B | 8541290080 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 10 months ago) |
| Gate to Source Threshold Voltage | 3 V |
| Drain to Source Breakdown Voltage | 30 V |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 7
Distributors
pcbx
pcbxUnit Price$0.59779
Ext.Price$0.59779
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.59779 | $0.59779 |
| 10 | $0.48278 | $4.82780 |
| 25 | $0.43628 | $10.90700 |
| 50 | $0.39426 | $19.71300 |
| 100 | $0.35628 | $35.62800 |
| 300 | $0.33827 | $101.48100 |
| 500 | $0.32117 | $160.58500 |
| 1000 | $0.30429 | $304.29000 |
